Material: High-grade alloy steel, Interface: Straight Shank, Accuracy: High precision ground, Finish: Heat treated and ground
Straight quick change tapping chuck adapter
The Straight Quick Change Tapping Chuck Adapter provides a robust and reliable connection between straight shanks and tapping collet systems. Designed for high-speed tapping operations in CNC machining centers, these adapters ensure excellent concentricity and secure collet retention. Available in D20, D25, and D32 shank diameters to match your machine requirements, with compatibility for GT12 and GT24 quick-change tapping collets.
Key Features:
• High-precision straight shank design for accurate mounting
• Quick-change system for fast tool changeover
• Compatible with GT12 (M3-M16) and GT24 (M5-M30) tapping collets
• Hardened and ground for maximum accuracy and durability
• Suitable for rigid tapping operations
• Excellent concentricity for superior thread quality
• Available in multiple shank diameters (D20, D25, D32)
Applications:
• Rigid tapping in CNC machining centers
• High-speed thread production
• Automated tool change systems
• Production machining environments
• Ideal for machines with straight shank tool holders

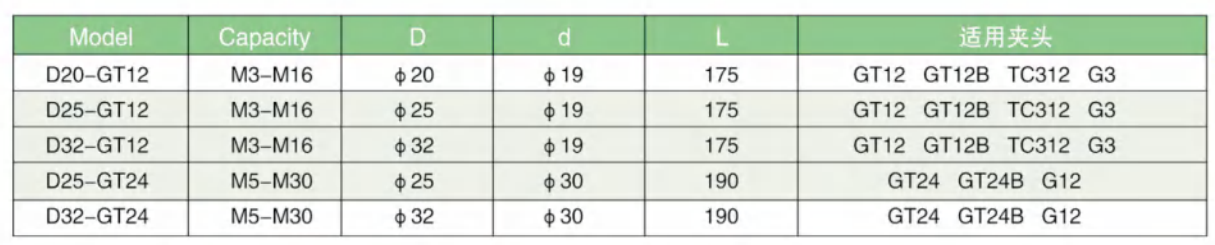

Select Specifications
φ(d)=Cutting Diameter | R=Radius | D=Shank Diameter | I=Cutting Length | L=Overall Length | All in mm

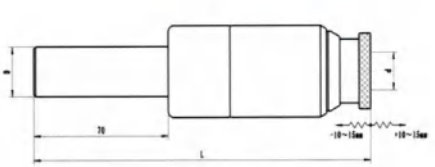

D=Diameter | L1, L2, L3=Length Dimensions | L=Overall Length | D1=Shank Diameter | All in mm
