Compatible Carbide Inserts
Specifications
Material & Construction
Material: High-grade steel, Interface: LBK & BST series locking blocks, Accuracy: High precision, Finish: Precision ground
RBH Indexable Twin-bit Rough Boring Heads

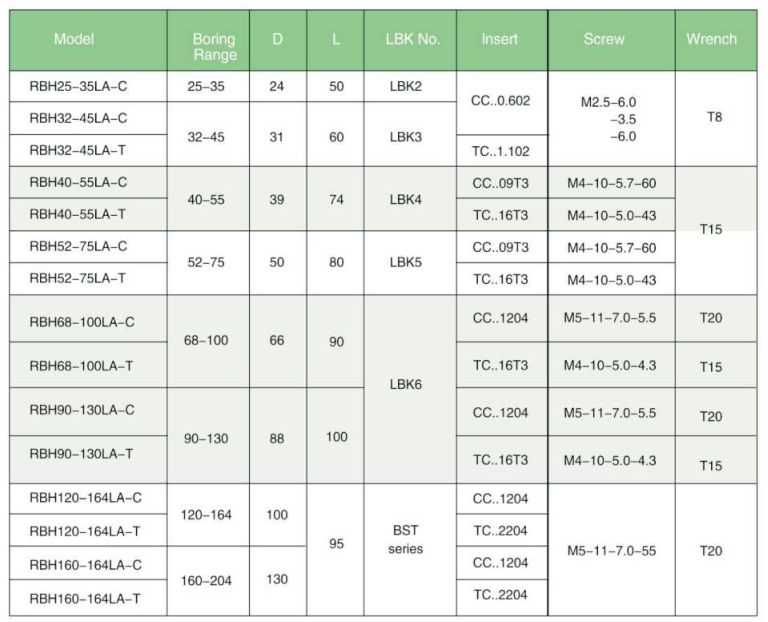

RBH Indexable Twin-bit Rough Boring Heads are specialized tools designed for rough boring operations in large diameter applications. These heads feature twin cutting inserts for balanced cutting forces and enhanced productivity in heavy roughing cuts. Key Features: • Twin-bit Design: Two cutting inserts for balanced cutting forces and reduced vibration • Indexable Inserts: Quick insert changes without removing the head from machine • Multiple Boring Ranges: From 25mm to 204mm diameter capacity • Two Insert Types: C-type (CC series - 80° diamond) and T-type (TC series - triangular) • LBK Locking Blocks: Secure insert clamping systems (LBK2-LBK6, BST series) • Various Shank Diameters: From 24mm to 130mm for different applications • High Rigidity: Robust construction for stable boring operations Model Nomenclature: • **RBH**: Product series (Rough Boring Head) • **25-35**: Boring diameter range (25mm min to 35mm max) • **LA**: Insert locking mechanism/head design type • **C/T**: Insert type designation - **C**: Uses CC-series inserts (CCMT/CCGT style - 80° diamond inserts) - **T**: Uses TC-series inserts (TCMT/TCGT style - triangular inserts) Insert Types: • **C-Type (CC Series)**: 80° diamond shaped inserts for general boring operations • **T-Type (TC Series)**: Triangular inserts for specific boring applications Applications: • Large diameter rough boring operations • Heavy material removal in boring • Pre-machining before finish boring • Cast iron and steel boring • Production machining with high metal removal rates • Automotive and aerospace component manufacturing
Select Specifications
φ(d)=Cutting Diameter | R=Radius | D=Shank Diameter | I=Cutting Length | L=Overall Length | All in mm
D=Diameter | L1, L2, L3=Length Dimensions | L=Overall Length | D1=Shank Diameter | All in mm
Select blade width, groove depth (T), and working radius range to find the right Face Groove tool
Select boring diameter range, shank diameter (D), and insert type (C=diamond/T=triangular) to find the right boring head
Select CBA model (complete boring range) and internal boring range to find the right micro finish boring head
Select LBK model (matches your CBA boring head) and extension length to find the right extension rod

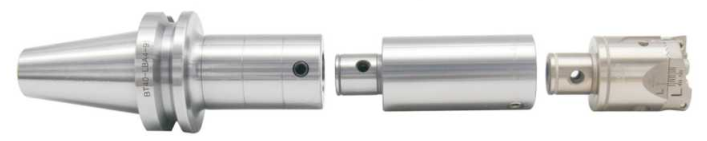

Select BT type (spindle taper), LBK number (locking block socket), CBA head model, and projection length (L1) to find the right boring head shank
HRC≤56 is recommended for best price/performance ratio with newest nano-black coating technology.
No variants match the selected filters.
Try adjusting your filter selections.
No variants match the selected filters.
Try adjusting your filter selections.
SKU / Article Number
D (Diameter)
L1
L2
L3
L (Overall)
D1
Insert Code
Insert Count
Boring Range
D (Shank Ø)
L (Length)
LBK No.
Insert
Insert Type
Screw
Wrench
Blade Width
Blade Height
Groove Depth
Orientation
Working Radius Range
Compatible Inserts
φ(d)
R
D
I
L
Morse #
H7 Tolerance
Login to Purchase
Sign in to see prices, stock availability, and add items to your cart.
Please select specifications above to see details
