BT LBA Boring Head Shanks
TAPER TYPE: BT (MAS 403)
CNC Spindle Adapter for LBK Boring System

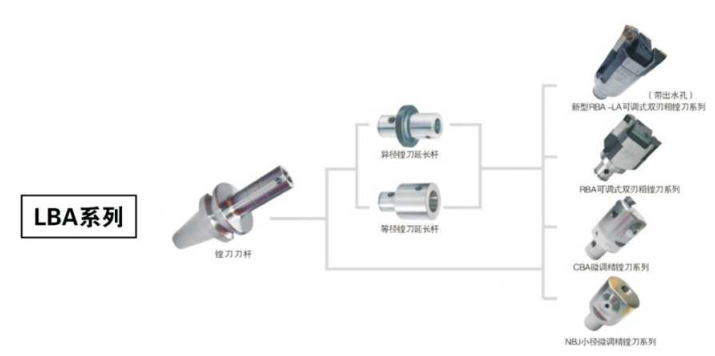

BT taper shanks for mounting CBA and RBH boring heads to CNC machining centers. These precision-ground shanks provide the critical connection between your machine spindle and the LBK modular boring system. Available in BT30, BT40, and BT50 tapers with various LBK sizes.
AVAILABLE CONFIGURATIONS
BT Taper Sizes
- BT30 - Smaller machines
- BT40 - Most common
- BT50 - Heavy duty
LBK Sizes
- LBK1 β CBA20
- LBK2 β CBA25
- LBK3 β CBA32
- LBK4 β CBA40
- LBK5 β CBA52
- LBK6 β CBA68+
Projection Lengths
Various L1 lengths available:
COMPATIBLE BORING HEADS
KEY BENEFITS
Compatible Carbide Inserts
Specifications
Material & Construction
Material: High-grade steel, Interface: BT taper with LBK socket system, Accuracy: High precision BT taper, Finish: Precision ground
How to Choose the Correct Shank
Match Your Machine Spindle
Choose BT30, BT40, or BT50 based on your CNC machine's spindle taper type.
Match the LBK Number to Your Boring Head
The LBK number on this shank MUST match the LBK number on your CBA or RBH boring head for proper fit.
Choose Your Required Reach
Select the projection length (L1) based on your workpiece depth. Longer L1 = deeper reach into the workpiece.
Important: This shank is designed specifically for CBA Micro Finish Boring Heads and RBH Indexable Twin-bit Rough Boring Heads. Always verify LBK compatibility before ordering.
BT LBA Boring Head Shanks
Select Specifications
Ο(d)=Cutting Diameter | R=Radius | D=Shank Diameter | I=Cutting Length | L=Overall Length | All in mm
D=Diameter | L1, L2, L3=Length Dimensions | L=Overall Length | D1=Shank Diameter | All in mm
Select blade width, groove depth (T), and working radius range to find the right Face Groove tool
Select boring diameter range, shank diameter (D), and insert type (C=diamond/T=triangular) to find the right boring head
Select CBA model (complete boring range) and internal boring range to find the right micro finish boring head
Select LBK model (matches your CBA boring head) and extension length to find the right extension rod

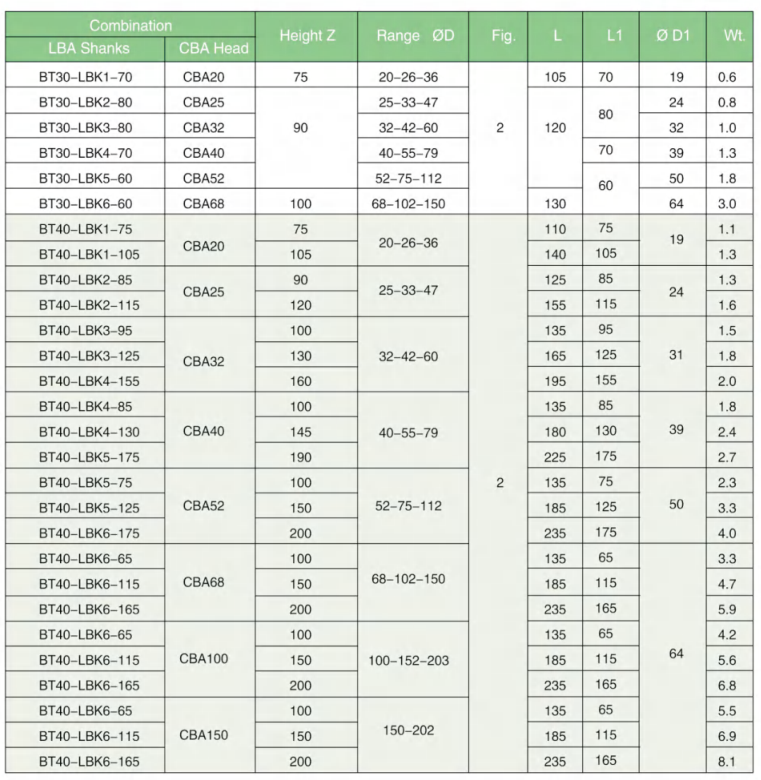

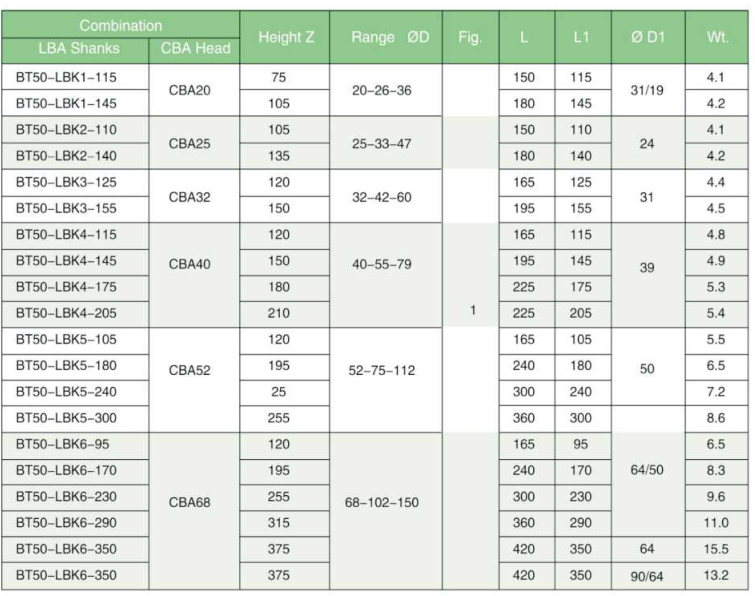

Select BT type (spindle taper), LBK number (locking block socket), CBA head model, and projection length (L1) to find the right boring head shank
