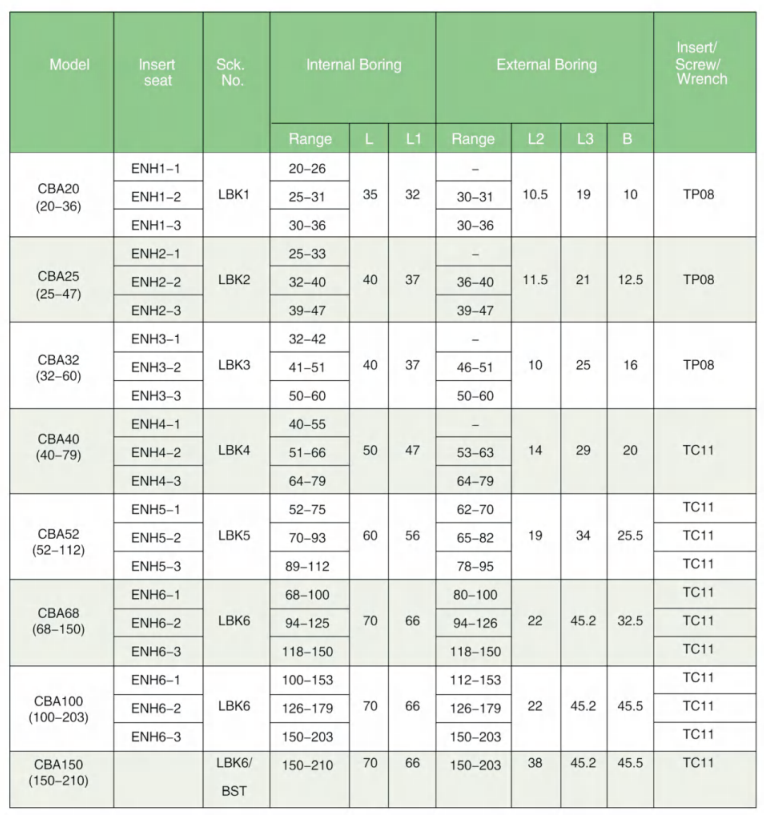

CBA Micro Finish Boring Heads - CBA Micro Finish Boring Heads_table.png

+/- buttons or keys to zoom • Scroll to pan • Click for full size

Keyboard: + zoom in, - zoom out, 0 reset

CBA Micro Finish Boring Heads

PRECISION BORING: ±0.01mm ACCURACY

Adjustable Cartridge System for Fine Boring

High-precision micro finish boring heads with adjustable cartridge system for fine boring operations. Achieve exceptional surface finish and dimensional accuracy with micro-adjustment capability. Perfect for finishing bores to tight tolerances in a single pass.

AVAILABLE MODELS

CBA Models

CBA20 (LBK1)
CBA25 (LBK2)
CBA32 (LBK3)
CBA40 (LBK4)
CBA52 (LBK5)
CBA68/100/150 (LBK6)

Boring Ranges

Ø8-280mm

Range depends on model and cartridge selection

Adjustment

Micro-dial adjustment for precise diameter control

±0.01mm per graduation

IDEAL APPLICATIONS

Precision bore finishing

Bearing seat machining

Hydraulic cylinder bores

Mold and die cavities

KEY BENEFITS

Micro-adjustable for exact diameters

Superior surface finish quality

Replaceable carbide cartridges

Wide boring range coverage

Compatible Carbide Inserts

Specifications

Material & Construction

Material: High-grade steel, Interface: LBK & BST locking block systems, Accuracy: Micron-level precision, Finish: Precision ground

CBA Micro Finish Boring Heads

Name: CBA Micro Finish Boring Heads
Brand: ZHUZHOU SENO
SKU: cba-micro-finish-boring-heads
Availability: InStock

Select Specifications

D=Diameter | L1, L2, L3=Length Dimensions | L=Overall Length | D1=Shank Diameter | All in mm

Select blade width, groove depth (T), and working radius range to find the right Face Groove tool

Select boring diameter range, shank diameter (D), and insert type (C=diamond/T=triangular) to find the right boring head

Select CBA model (complete boring range) and internal boring range to find the right micro finish boring head

Select LBK model (matches your CBA boring head) and extension length to find the right extension rod

Select BT type (spindle taper), LBK number (locking block socket), CBA head model, and projection length (L1) to find the right boring head shank
