Compatible U-Drill Inserts

SOMT U-Drill Insert

8 variants

Diameter & Insert Size Reference

Diameter Range	Insert Size	Insert Count
Ø10.0 - Ø13.0 mm	SOMT04	2 inserts
Ø14.0 - Ø16.0 mm	SOMT05	2 inserts
Ø17.0 - Ø19.0 mm	SOMT06	2 inserts
Ø20.0 - Ø22.0 mm	SOMT07	2 inserts
Ø23.0 - Ø26.0 mm	SOMT08	2 inserts
Ø27.0 - Ø31.0 mm	SOMT09	2 inserts
Ø32.0 - Ø35.0 mm	SOMT11	2 inserts

Best Used For

The SOMT U-Drill is designed for general-purpose drilling with exceptional chip control. It performs reliably across various materials including steel, cast iron, and non-ferrous metals.

Excellent chip evacuation in deep hole drilling
Good surface finish quality
Cost-effective for medium production runs

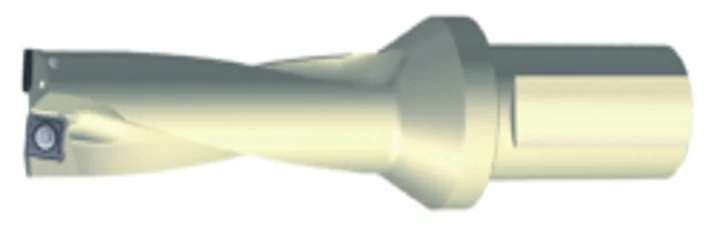

U-Drill for SOMT Inserts

Name: U-Drill for SOMT Inserts
Brand: ZHUZHOU SENO
SKU: u-drill-for-somt-inserts
Availability: InStock
Rating: 4.8 (110 reviews)

U-Drill for SOMT Inserts - Multiple drill depths (2D, 3D, 4D, 5D) available

Internal Coolant System

Equipped with internal coolant channels for enhanced cooling

Select Specifications

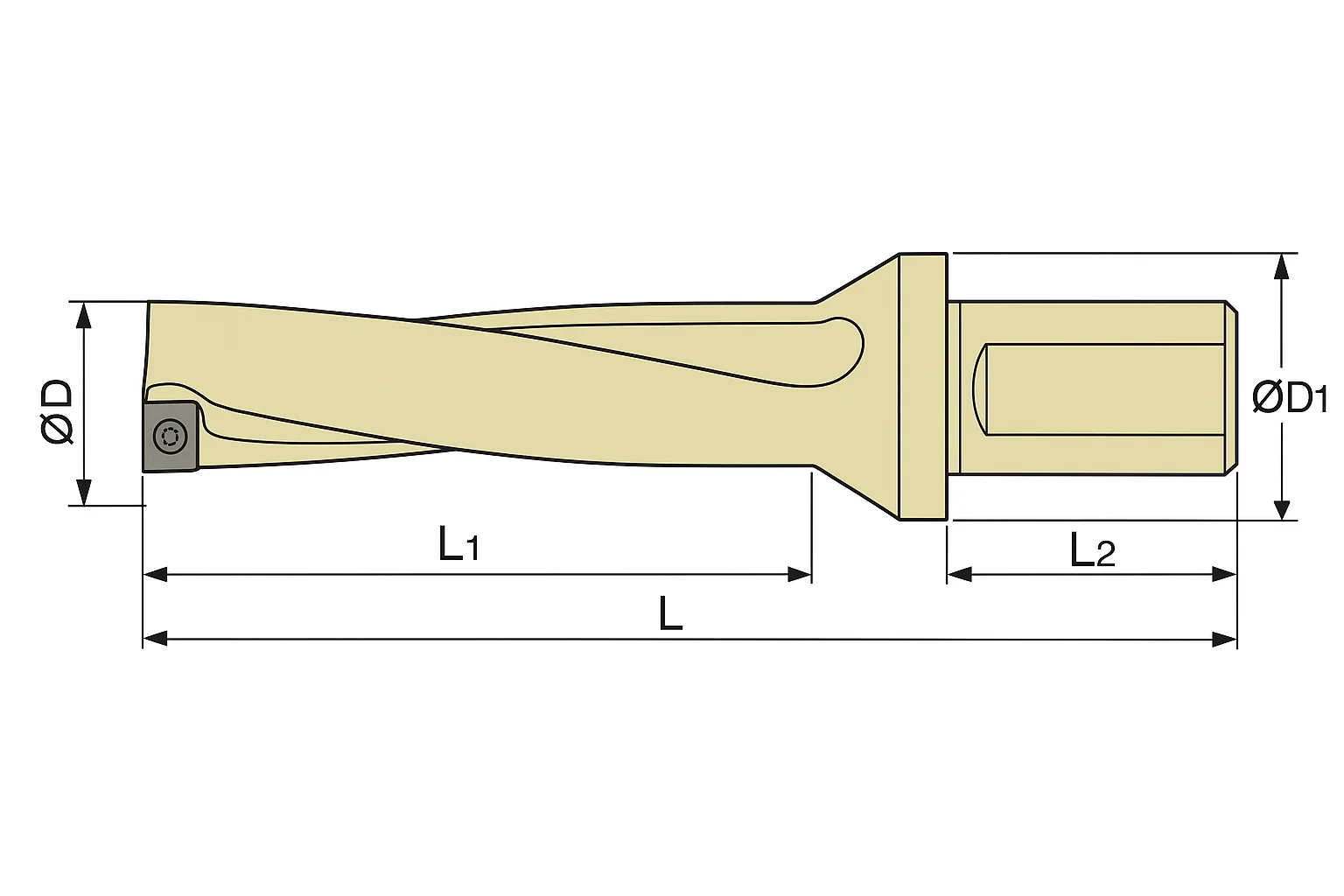

D=Diameter | L1, L2, L3=Length Dimensions | L=Overall Length | D1=Shank Diameter | All in mm
