SNMG-SNMM
+/- buttons or keys to zoom • Scroll to pan • Click for full size

Keyboard: + zoom in, - zoom out, 0 reset

Compatible Turning Tools

PSSN - External

PSSN - External

20 variants
PSKN - Internal

PSKN - Internal

6 variants
PSKN - External

PSKN - External

22 variants
PSBN - External

PSBN - External

33 variants

Material Grade Guide

For: • Equiv:

Technical Specifications

Coating

Unit Price

Login

Workpiece

Operations Supported:

ISO Material Compatibility:

ISO Material Application Codes:

P - Steel
M - Stainless Steel
K - Cast Iron
N - Non-ferrous
S - Heat-resistant

♦ = Supported operation type

Understanding ISO Material Codes

P Steel
P10–P20 → Finishing
200-300 HB • Harder steels
P20–P30 → General purpose
150-280 HB • Medium carbon/alloy
P30–P45 → Roughing
120-220 HB • Softer steels
Lower numbers = Harder steels, stable cuts
Higher numbers = Softer steels, interrupted cuts
M Stainless Steel
M10–M20 → Finishing
150-250 HB • Austenitic SS
M20–M30 → General purpose
180-300 HB • Duplex/Ferritic SS
M30–M35 → Roughing
200-350 HB • Higher strength
Stainless steels - High chip control needed
Work hardens - PVD coatings preferred
K Cast Iron
K10–K15 → Finishing
180-240 HB • Harder cast iron
K15–K20 → General purpose
140-200 HB • Gray/Ductile
K20–K25 → Roughing
120-180 HB • Softer, interrupted
Gray & ductile cast iron
Abrasive - Wear-resistant grades needed
Quick Rule: Lower ISO numbers (10-20) = Finishing with stable cuts. Higher ISO numbers (30-45) = Roughing with interrupted cuts or softer materials.
Understanding ISO Ranges:
When you see a range like P15-P35, it means the insert is versatile and can handle:
  • ✓ P15 (Finishing) - For harder steels with light cuts
  • ✓ P20-P30 (General purpose) - Medium cuts on typical steels
  • ✓ P35 (Roughing) - Heavy cuts on softer steels
The wider the range, the more versatile the insert!

Understanding MGMN Insert Types

The type letter in MGMN inserts (G vs M) indicates the insert profile and use case:

G Groove Type
  • • Groove only
  • • Often sharper cutting edge
  • • Designed for lighter cuts
  • • Optimal for precision grooving
M Medium-Duty Type
  • • Medium-duty operations
  • • Can handle more feed rate
  • • Suitable for deeper cuts
  • • More robust for tougher conditions
Quick Tip: Choose G-type for precision work and lighter cuts. Choose M-type for more demanding operations with higher feeds or deeper grooves.

Recommended Application

SNMG-SNMM

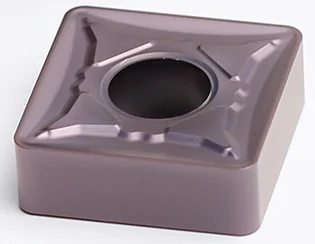

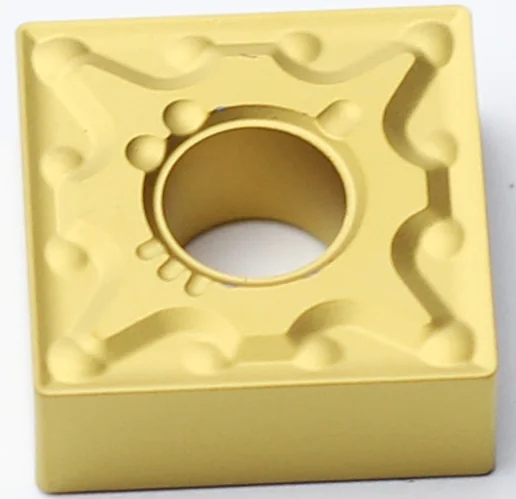

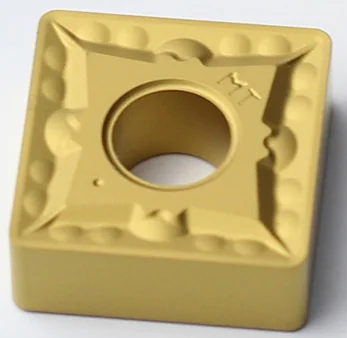

SNMG/SNMM Carbide Turning Insert - Square, Negative Rake **GEOMETRY: 90° square shape, negative rake angle** SNMG/SNMM for heavy duty turning: • Shape: 90° square - maximum strength • Rake: Negative (-) - double-sided, 8 cutting edges • Edges: 8 cutting edges per insert (most economical) • SNMM: Without center hole, for heavy roughing APPLICATIONS: ✓ Heavy roughing operations ✓ Maximum material removal ✓ Excellent for steel and cast iron ✓ Large depth of cut capability BEST FOR: Heavy roughing, maximum economy, tough conditions Compatible holders: MSSNR, PSSNR and similar

Select Specifications

Select workpiece material, operation type, material grade, and insert specifications to find the right carbide insert

Found insert
Legend:
Operations: F=Finishing • S=Semi-Finish • M=Medium • R=Rough • I=Interrupted | ♦♦♦=Excellent ♦♦=Good ♦=Fair
Icons: Coating
Showing first 50 results. Refine your search for more specific results.
No inserts found matching "". Try a different search term.

Operations Supported

F
S
M
R
I

ISO Material Compatibility

P: -
M: -
K: -
N: -
S: -

R

Thick

Coating

Stock: pcs

Login to Purchase

Sign in to see prices, stock availability, and add items to your cart.

Sign In Create Account

Please select specifications above to see details
