Specifications
Material & Construction
Material: High-grade steel, Accuracy: High precision, Finish: Fine balanced, Balancing: Fine balanced for high-speed
Explanation: SLN Bore Size
SLN Format: SLN[diameter]
Side Lock with Nut
Side lock clamping mechanism with securing nut
Inner Bore Diameter (Number)
The bore diameter in mm for clamping your tool
Examples
SLN20 = 20mm bore diameter for clamping tools
SLN32 = 32mm bore diameter for clamping tools
SLN40 = 40mm bore diameter for clamping tools
Usage: Select the SK taper that matches your machine spindle, then choose the SLN bore size that corresponds to your end mill shank diameter.

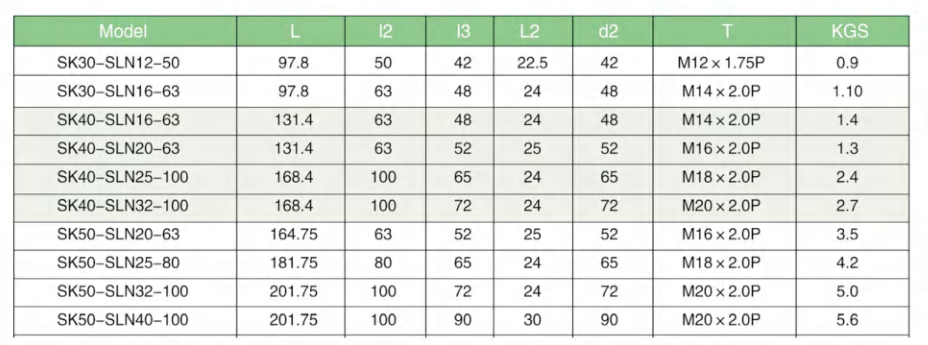

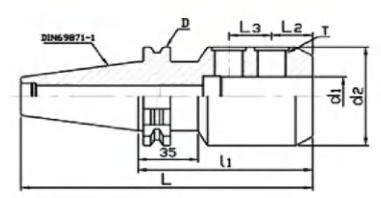

SK Side Lock End Mill Arbors
SK Side Lock End Mill Arbors are designed for secure clamping of end mills in CNC machining centers using SK taper connections. These arbors feature side lock mechanisms for reliable tool holding and quick tool changes, combined with the robust SK taper interface. Key Features: • SK Taper Interface: SK30, SK40, SK50 configurations for various machine sizes • Side Lock Design: Secure clamping mechanism for reliable tool holding • Multiple bore diameters (SLN): From 12mm to 40mm • High-quality construction for demanding applications • Precision ground surfaces for optimal runout • Fine balanced for high-speed operations • Quick tool changes with excellent repeatability SK Taper Sizes: • **SK30**: 30mm taper, suitable for smaller machines and lighter cutting • **SK40**: 40mm taper, most common size for general purpose machining • **SK50**: 50mm taper, heavy-duty applications and large machines SLN Bore Sizes: • SLN12, SLN16, SLN20, SLN25, SLN32, SLN40 • Covers wide range of end mill diameters • Precision bores for tight tolerances Applications: • End mill holder for face milling and slotting • High-speed CNC machining operations • Precision machining centers with SK taper spindles • General purpose milling applications • Heavy-duty cutting operations • Production machining environments
Select Specifications
φ(d)=Cutting Diameter | R=Radius | D=Shank Diameter | I=Cutting Length | L=Overall Length | All in mm
D=Diameter | L1, L2, L3=Length Dimensions | L=Overall Length | D1=Shank Diameter | All in mm
Select blade width, groove depth (T), and working radius range to find the right Face Groove tool
Select boring diameter range, shank diameter (D), and insert type (C=diamond/T=triangular) to find the right boring head
Select CBA model (complete boring range) and internal boring range to find the right micro finish boring head
Select LBK model (matches your CBA boring head) and extension length to find the right extension rod
Select BT type (spindle taper), LBK number (locking block socket), CBA head model, and projection length (L1) to find the right boring head shank
HRC≤56 is recommended for best price/performance ratio with newest nano-black coating technology.
