SK Integrated Keyless Drill Chucks

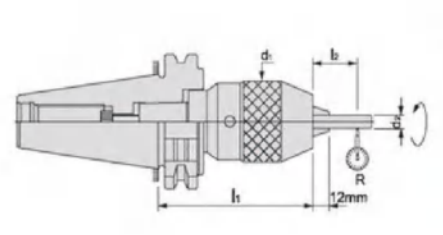

SK TAPER INTEGRATED DESIGN
For European/German machining centers
High-precision SK taper integrated keyless drill chucks for CNC machining centers. One-piece SK shank and drill chuck design for machines using the DIN 69871 taper standard.
SK30/SK40/SK50 shanks
Integrated one-piece design
Keyless quick-change
Excellent runout accuracy

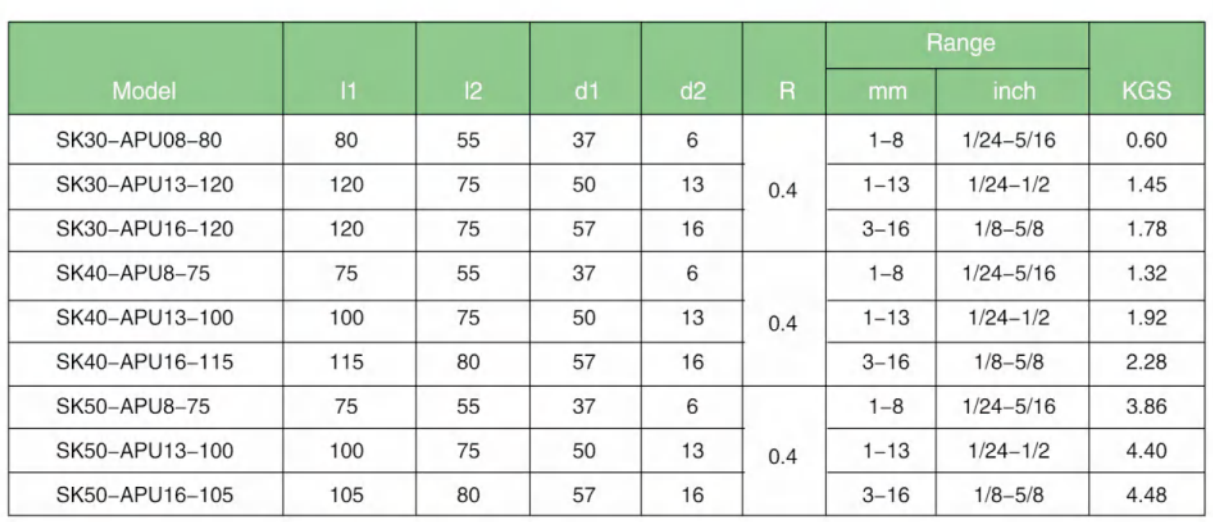

Specifications
Material & Construction
Material: Alloy Steel, Interface: SK Taper, Hardness: HRC48-52
SK Integrated Keyless Drill Chucks
