Side Lock Tapping Chuck
SECURE SIDE LOCK CLAMPING
No spinning or slipping under load
High-precision side lock straight shank tapping chuck adapters with positive mechanical locking. The side lock mechanism uses a flat on the shank and set screw to prevent any rotation, ideal for heavy-duty tapping where maximum security is required.
SIDE LOCK ADVANTAGES
Positive Lock
Flat on shank prevents rotation
Heavy Duty
For demanding tapping operations
Repeatable Setup
Same orientation every time
Easy Changes
Quick setup, secure hold
Note: Side lock holders require a matching holder with a set screw bore. Ensure your tool holder can accommodate side lock shanks before ordering.
Specifications
Material & Construction
Material: High-grade alloy steel, Interface: Side Lock Straight Shank, Accuracy: High precision ground, Finish: Heat treated and ground

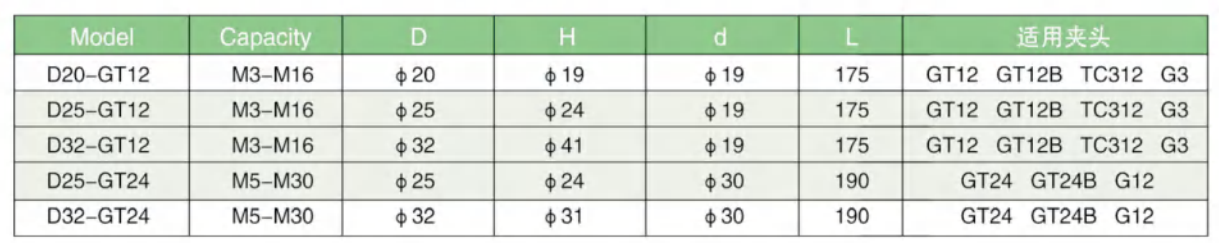

Side Lock Straight Quick Change Tapping Chuck Adapter
Select Specifications
φ(d)=Cutting Diameter | R=Radius | D=Shank Diameter | I=Cutting Length | L=Overall Length | All in mm

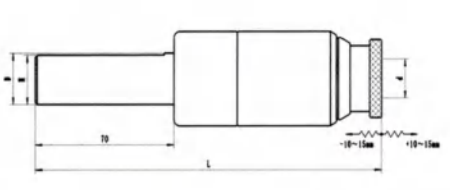

D=Diameter | L1, L2, L3=Length Dimensions | L=Overall Length | D1=Shank Diameter | All in mm
Select blade width, groove depth (T), and working radius range to find the right Face Groove tool
Select boring diameter range, shank diameter (D), and insert type (C=diamond/T=triangular) to find the right boring head
Select CBA model (complete boring range) and internal boring range to find the right micro finish boring head
Select LBK model (matches your CBA boring head) and extension length to find the right extension rod
Select BT type (spindle taper), LBK number (locking block socket), CBA head model, and projection length (L1) to find the right boring head shank
How to Choose the Right Holder
Shank Height (H): Choose based on your machine's tool holder/turret slot size
Tool Height (H3): Must match the H dimension of your SPB Tool (26mm or 32mm)
Example: If you have SPB26-3 tool (H=26mm), select H3=26mm
Must match your SPB Tool's H dimension
HRC≤56 is recommended for best price/performance ratio with newest nano-black coating technology.
