Compatible Accessories
Specifications
Material & Construction
Material: High-grade steel, Accuracy: High precision, Finish: Hardened and ground, Coolant: Through-coolant (oil hole)

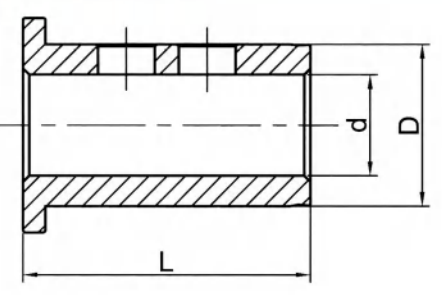

Explanation: Model Code Format
Model Format: D-d
Outer Diameter (First Number)
The size that fits into your tool holder
Inner Diameter (Second Number)
The bore size for your tool

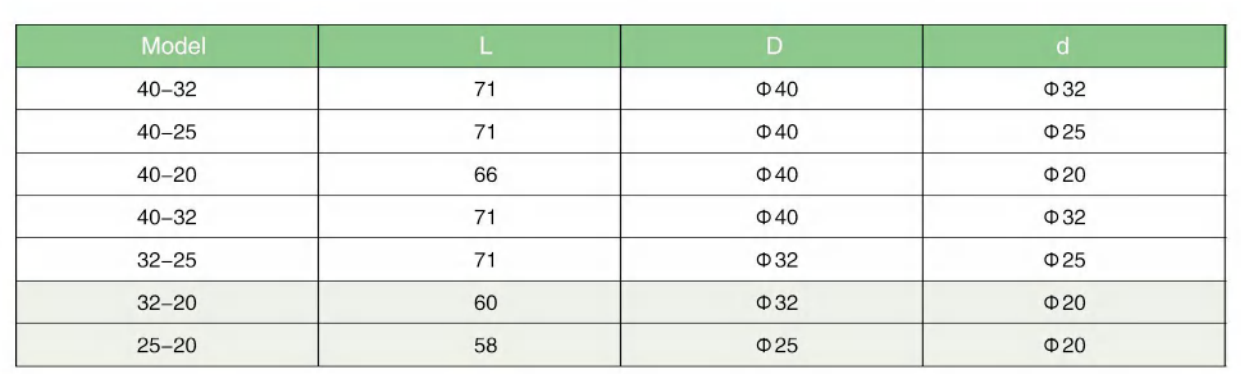

Example
40-32 means:
- 40mm outer diameter (fits into 40mm holder)
- 32mm inner bore (holds 32mm diameter tool)
Usage: These reduction sleeves allow you to use smaller diameter tools in larger tool holders, providing flexibility in your machining operations.
OMS Sleeves with side solid oil
OMS Sleeves with side solid oil are precision reduction sleeves designed to adapt larger tool holders to smaller diameter tools. These sleeves feature side lock mechanisms and oil holes for through-coolant applications, ensuring secure clamping and efficient cooling. Key Features: • Side Lock Design: Secure clamping mechanism for reliable tool holding • Oil Hole: Through-coolant capability for efficient chip evacuation • Reduction Functionality: Adapts larger holders to smaller tool diameters • High-precision construction for minimal runout • Hardened and ground surfaces for durability • Multiple size combinations available Model Naming Explanation: • The model number format is "D-d" • First number (D): Outer diameter - the size that fits into your tool holder • Second number (d): Inner diameter - the bore size for your tool • Example: Model "40-32" has a 40mm outer diameter and 32mm inner diameter (bore) Applications: • Adapting tool holders to smaller diameter tools • End mill operations requiring size reduction • Drilling and milling with through-coolant capability • Precision machining applications • Universal tool holding solutions Technical Specifications: • Material: High-grade steel • Hardness: Hardened and ground • Accuracy: High precision bore tolerance • Coolant compatible: Yes (oil hole design) • Surface finish: Precision ground
Select Specifications
φ(d)=Cutting Diameter | R=Radius | D=Shank Diameter | I=Cutting Length | L=Overall Length | All in mm
D=Diameter | L1, L2, L3=Length Dimensions | L=Overall Length | D1=Shank Diameter | All in mm
Select blade width, groove depth (T), and working radius range to find the right Face Groove tool
Select boring diameter range, shank diameter (D), and insert type (C=diamond/T=triangular) to find the right boring head
Select CBA model (complete boring range) and internal boring range to find the right micro finish boring head
Select LBK model (matches your CBA boring head) and extension length to find the right extension rod
Select BT type (spindle taper), LBK number (locking block socket), CBA head model, and projection length (L1) to find the right boring head shank
HRC≤56 is recommended for best price/performance ratio with newest nano-black coating technology.
No variants match the selected filters.
Try adjusting your filter selections.
No variants match the selected filters.
Try adjusting your filter selections.
SKU / Article Number
D (Diameter)
L1
L2
L3
L (Overall)
D1
Insert Code
Insert Count
h
b
H
F
L
L1
f
Insert
Blade Width
Blade Height
Groove Depth
Orientation
Working Radius Range
Compatible Inserts
φ(d)
R
D
I
L
Morse #
H7 Tolerance
Login to Purchase
Sign in to see prices, stock availability, and add items to your cart.
Please select specifications above to see details
