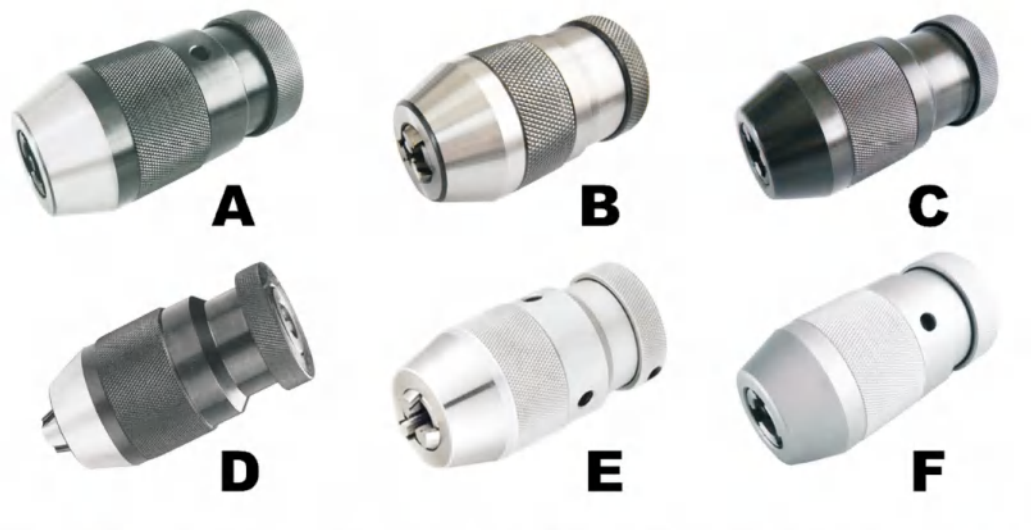

Keyless Drill Chucks
QUICK TOOL CHANGES - NO KEY NEEDED
Tighten and loosen by hand
High-precision keyless drill chucks with Morse taper and Jacobs taper mounting. Quick tool changes without needing a chuck key - simply grip and twist to tighten or loosen.
Advantages
• Fast tool changes
• No chuck key required
• Self-tightening action
• Wide clamping range
Common Sizes
• 1-10mm capacity
• 1-13mm capacity
• 3-16mm capacity
• MT2, MT3, JT33 shanks
Specifications
Material & Construction
Material: High-grade alloy steel, Interface: Morse Taper / Jacobs Taper, Accuracy: High precision ground, Finish: Heat treated and hardened jaws

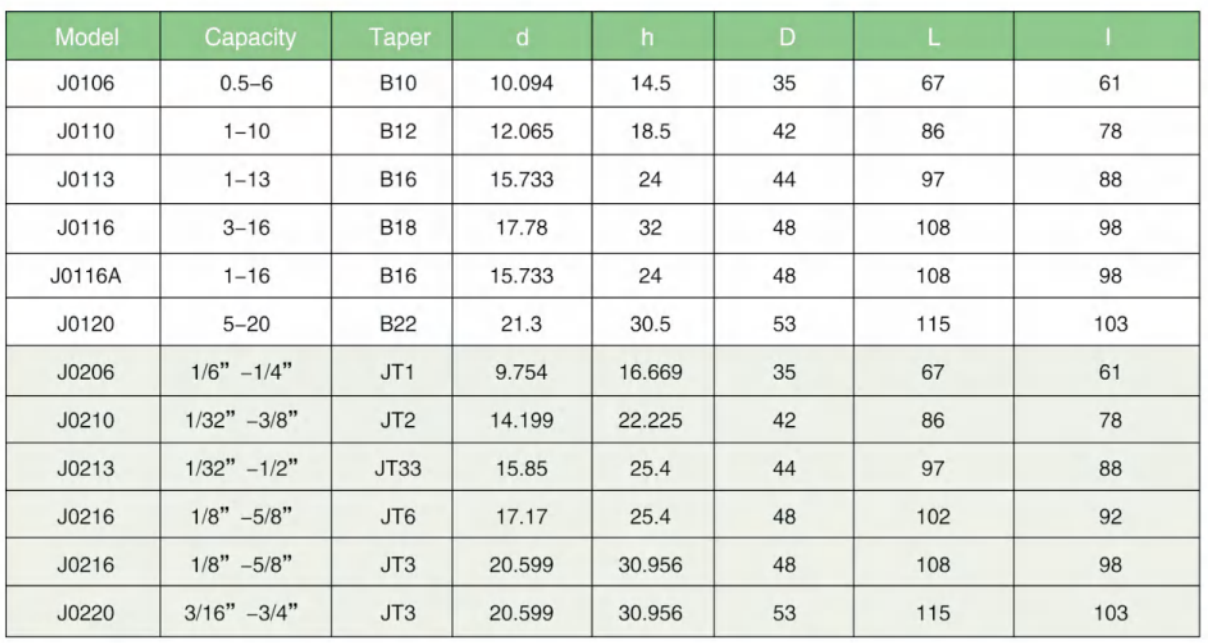

Keyless Drill Chucks
Select Specifications

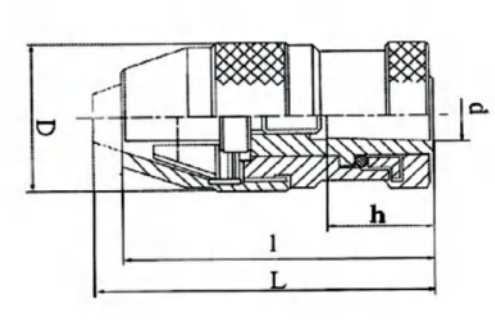

φ(d)=Cutting Diameter | R=Radius | D=Shank Diameter | I=Cutting Length | L=Overall Length | All in mm
