Integrated Keyless Drill Chucks with Morse Taper, Straight or R8 shanks

Integrated Keyless Drill Chucks with Morse Taper, Straight or R8 shanks - Image 2

Integrated Keyless Drill Chucks with Morse Taper, Straight or R8 shanks - Image 3

+/- buttons or keys to zoom • Scroll to pan • Click for full size

Keyboard: + zoom in, - zoom out, 0 reset

Specifications

Material & Construction

Material: Alloy Steel, Interface: Morse Taper, Hardness: HRC48-52

Integrated Keyless Drill Chucks with Morse Taper, Straight or R8 shanks

Name: Integrated Keyless Drill Chucks with Morse Taper, Straight or R8 shanks
Brand: ZHUZHOU SENO
SKU: integrated-keyless-drill-chucks-with-morse-taper-straight-or-r8-shanks
Availability: InStock
Rating: 4.8 (14 reviews)

Integrated Keyless Drill Chucks with Morse Taper shanks offer reliable clamping performance for drilling operations. Available in MT3 and MT4 taper types with various capacity ranges. These integrated chucks provide excellent concentricity and holding power for drill bits and other cylindrical tools. Suitable for high-speed drilling applications with precise tool positioning on machines equipped with Morse Taper spindles.

Select Specifications

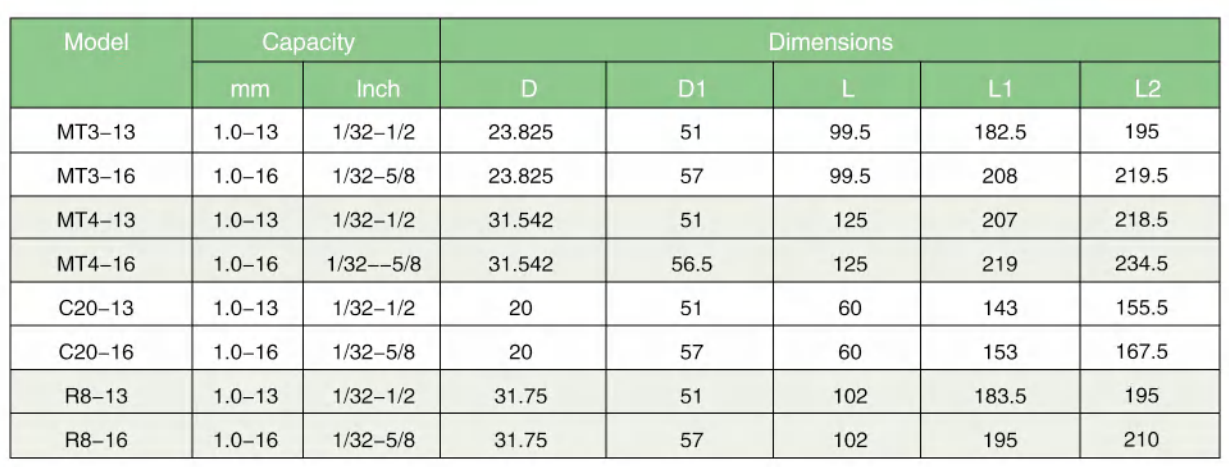

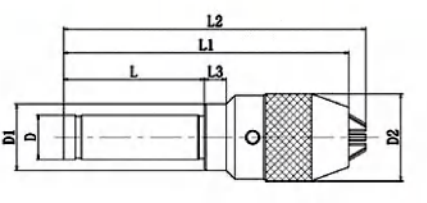

D=Diameter | L1, L2, L3=Length Dimensions | L=Overall Length | D1=Shank Diameter | All in mm
