EXN High Feed Cutter - Straight Shank

EXCELLENT FOR: HIGH-FEED ROUGHING

on Steel and Stainless Steel (Straight Shank Version)

The EXN High Feed Cutter Straight Shank version provides excellent rigidity for high-feed roughing operations. The straight shank design allows direct clamping in ER collet chucks or shrink-fit holders - perfect for smaller machines.

APPLICATION TYPE: ROUGHING / HIGH-FEED MILLING

Primary Use: High-feed roughing with straight shank

Material Removal: High - uses high feed strategy

Strategy: High-feed milling (HFM)

Best for: Steel, Stainless Steel, Cast Iron

Key Features

Compatible with LNMU03 inserts

Straight shank for ER collets/shrink-fit

High-feed geometry for efficient roughing

Maximum rigidity in smaller machines

Available diameters: 20mm - 35mm

Cost-effective alternative to TurboMill

WHEN TO USE EXN Straight Shank

When you need straight shank tooling

Roughing in smaller machines

Small to medium diameter milling (20-35mm)

Budget-friendly high-feed option

CUTTING PARAMETERS (typical)

Parameter	Symbol	Range (for steel)
Depth of cut	ap	0.3 - 1.0 mm
Feed per tooth	fz	0.8 - 2.0 mm
Cutting speed	Vc	120 - 200 m/min

Parameters may vary based on material grade and machine rigidity. Always start with conservative values.

Compatible Milling Inserts

LNMU

8 variants

EXN High FEED Cutter Head - Straight Shank

Name: EXN High FEED Cutter Head - Straight Shank
Brand: ZHUZHOU SENO
SKU: exn-high-feed-cutter-head-straight-shank
Availability: InStock

Select Specifications

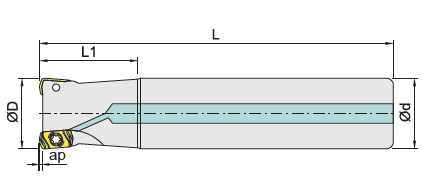

D=Diameter | L1, L2, L3=Length Dimensions | L=Overall Length | D1=Shank Diameter | All in mm
