Compatible ER Collet Accessories
Specifications
Material & Construction
Material: 65Mn, Hardness: HRC44-48, Standard: DIN6499-A
ERG Tap Collet

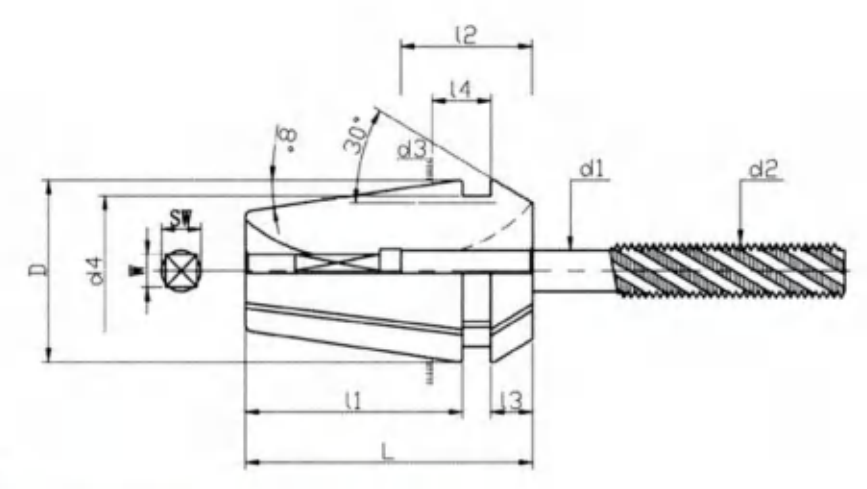

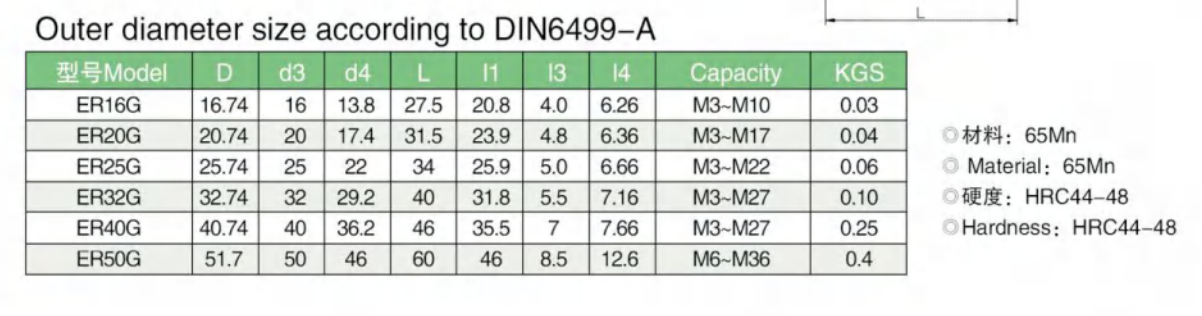

ERG Tap Collets - Floating Tap Holders for Threading **SPECIAL COLLET - Allows axial float for tapping operations** ERG (ER with "G" for tapping) collets have a floating mechanism that allows the tap to self-feed during threading operations, preventing thread damage. WHY USE ERG TAP COLLETS: ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ Regular collets hold tap RIGID → Thread pitch errors possible ERG collets allow FLOAT → Tap follows its own pitch perfectly! ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ AVAILABLE SIZES: ┌──────────┬───────────────┬────────────────────────┐ │ ERG Size │ Tap Capacity │ For Thread Sizes │ ├──────────┼───────────────┼────────────────────────┤ │ ER16G │ M3-M10 │ Small taps │ │ ER20G │ M3-M12 │ Common taps │ │ ER25G │ M3-M17 │ Medium taps │ │ ER32G │ M3-M22 │ Large taps (most used) │ │ ER40G │ M3-M27 │ Heavy duty taps │ │ ER50G │ M6-M36 │ Very large taps │ └──────────┴───────────────┴────────────────────────┘ HOW TO USE: 1. Insert ERG collet into ER tool holder 2. Insert tap shank into ERG collet 3. Tighten with ER nut (normal tension) 4. Program tapping cycle - ERG allows float! TAP SQUARE DRIVE: ERG collets have a square drive hole that engages the square on the tap shank. This transmits torque while allowing axial movement. COMPATIBLE WITH: • BT-ER Tool Holders • SK-ER Tool Holders • HSK-A-ER Tool Holders • Side Lock Straight Shank Holders • ER Nuts (standard A or M type) • HSS Taps and Carbide Taps APPLICATION: ✓ Rigid tapping on CNC machines ✓ Synchronized tapping ✓ Prevents tap breakage ✓ Better thread quality 74 variants | Price: €11.53 - €16.74
Select Specifications
φ(d)=Cutting Diameter | R=Radius | D=Shank Diameter | I=Cutting Length | L=Overall Length | All in mm
D=Diameter | L1, L2, L3=Length Dimensions | L=Overall Length | D1=Shank Diameter | All in mm
Select blade width, groove depth (T), and working radius range to find the right Face Groove tool
Select boring diameter range, shank diameter (D), and insert type (C=diamond/T=triangular) to find the right boring head
Select CBA model (complete boring range) and internal boring range to find the right micro finish boring head
Select LBK model (matches your CBA boring head) and extension length to find the right extension rod
Select BT type (spindle taper), LBK number (locking block socket), CBA head model, and projection length (L1) to find the right boring head shank
HRC≤56 is recommended for best price/performance ratio with newest nano-black coating technology.
No variants match the selected filters.
Try adjusting your filter selections.
No variants match the selected filters.
Try adjusting your filter selections.
SKU / Article Number
D (Diameter)
L1
L2
L3
L (Overall)
D1
Insert Code
Insert Count
h
b
H
F
L
L1
f
Insert
Blade Width
Blade Height
Groove Depth
Orientation
Working Radius Range
Compatible Inserts
φ(d)
R
D
I
L
Morse #
H7 Tolerance
Login to Purchase
Sign in to see prices, stock availability, and add items to your cart.
Please select specifications above to see details
