ER Spanners / Wrenches
ESSENTIAL TOOL FOR ER COLLET SYSTEMS
Proper tightening = proper tool holding
High-quality ER spanners for ER collet nut installation and removal. Using the correct spanner ensures proper torque application without damaging the nut or holder.
SPANNER SIZE GUIDE
ER11For ER11 nuts
ER16For ER16 nuts
ER20For ER20 nuts
ER25For ER25 nuts
ER32Most common
ER40For ER40 nuts
ER50For ER50 nuts
Pro Tip: Apply even torque when tightening. Over-tightening can damage the collet and reduce clamping precision. Under-tightening can cause tool slippage.
Material: High-grade steel construction with corrosion-resistant coating. Ergonomic non-slip rubber handle for comfortable grip and precise torque control.
Technical Information
ER Spanners are essential tools for working with ER collet systems. Available in 6 different types to accommodate various ER nut configurations:
• ERM: For ER-M type nuts

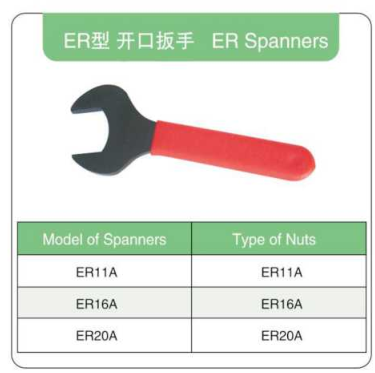

• ER: For standard ER-A type nuts

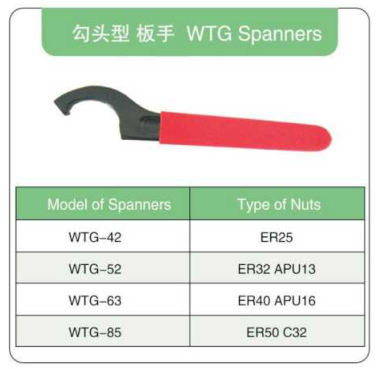

• WTG: For larger ER nuts (ER25, ER32, ER40, ER50)

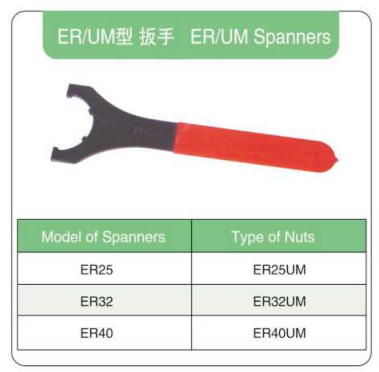

• ER/UM: For ER-UM ultra-mini nuts

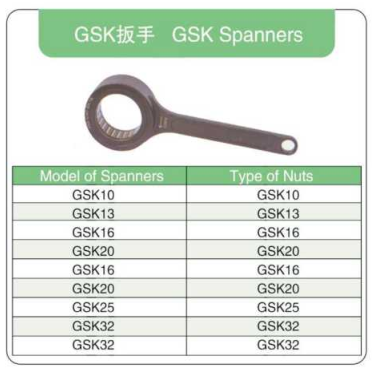

• GSK: For GSK special application nuts

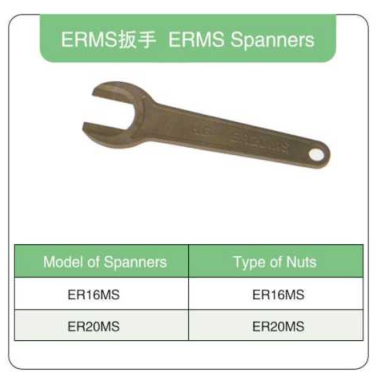

• ERMS: For ER-MS mini-slim nuts
Each spanner is sized specifically for its corresponding ER nut type, ensuring proper fit and preventing damage to the nut surfaces.
