Specifications
Material & Construction
Material: High-grade steel, Accuracy: High precision, Finish: Hardened and ground
C/SL Straight small Shank Holders

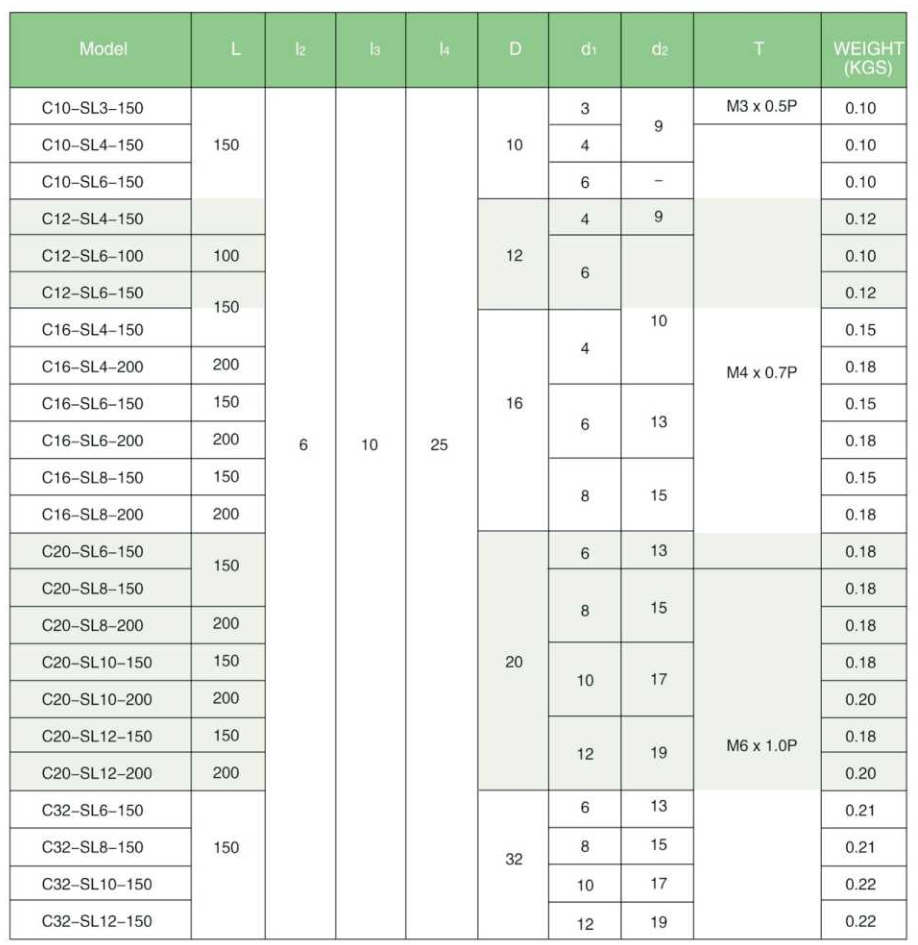

C/SL Straight Small Shank Holders - Compact Tool Holding **TYPE: Compact straight shank with side-lock for small tools** AVAILABLE CONFIGURATIONS: ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ C-Shank Sizes: C10, C12, C16, C20, C32 SL (Side Lock) Tool Diameters: SL3, SL4, SL6, SL8, SL10, SL12 (For tools with 3mm, 4mm, 6mm, 8mm, 10mm, 12mm shanks) Overall Lengths: 100mm, 150mm, 200mm Thread: M3x0.5, M4x0.7, M6x1.0 ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ WHAT IS C/SL: C/SL holders directly grip small diameter tools using a side-lock screw mechanism. No collet needed - the tool is clamped directly. HOW TO ASSEMBLE: 1. Mount C-shank into BT/SK/HSK holder with C-holder adapter 2. Insert small tool shank into SL bore 3. Tighten side-lock screw to clamp tool WHEN TO USE: • Micro machining (tools 3-12mm) • Watch/jewelry industry • Precision engraving • Small end mills and drills • When ER collet would be too large WHAT FITS WITH WHAT: • C10-SL3/SL4/SL6: For 3mm, 4mm, 6mm tools • C12-SL4/SL6: For 4mm, 6mm tools • C16-SL4/SL6/SL8: For 4mm, 6mm, 8mm tools • C20-SL6/SL8/SL10/SL12: For 6-12mm tools • C32-SL6/SL10/SL12: For larger setups with 6-12mm tools ADVANTAGE OVER ER COLLETS: • More compact • Direct clamping (no collet to lose) • Better for very small tools REQUIRED ACCESSORIES: • C-Holder adapter in your main holder (BT-C, SK-C, HSK-C) • Allen key for side-lock screw 23 variants available | Price: €25.91 - €29.89
Select Specifications
φ(d)=Cutting Diameter | R=Radius | D=Shank Diameter | I=Cutting Length | L=Overall Length | All in mm

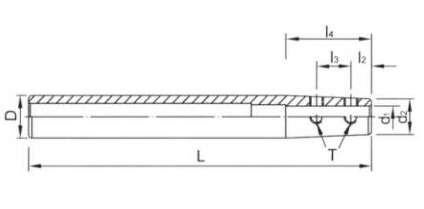

D=Diameter | L1, L2, L3=Length Dimensions | L=Overall Length | D1=Shank Diameter | All in mm
Select blade width, groove depth (T), and working radius range to find the right Face Groove tool
Select boring diameter range, shank diameter (D), and insert type (C=diamond/T=triangular) to find the right boring head
Select CBA model (complete boring range) and internal boring range to find the right micro finish boring head
Select LBK model (matches your CBA boring head) and extension length to find the right extension rod
Select BT type (spindle taper), LBK number (locking block socket), CBA head model, and projection length (L1) to find the right boring head shank
HRC≤56 is recommended for best price/performance ratio with newest nano-black coating technology.
