BT to MT Adapter Sleeves

BT SPINDLE → MORSE TAPER TOOLS

Use MT tools in BT machining centers

BT to Morse Taper adapter sleeves for mounting MT tools in BT spindles. Perfect for using your existing Morse Taper drills and reamers in CNC machining centers with BT spindles.

Available Configurations:

BT30 → MT1/MT2 BT40 → MT2/MT3 BT50 → MT3/MT4

Specifications

Material & Construction

Material: Alloy Steel, Interface: BT Shank to Morse Taper, Hardness: HRC48-52

BT x MT Adapt Sleeves

Name: BT x MT Adapt Sleeves
Brand: ZHUZHOU SENO
SKU: bt-x-mt-adapt-sleeves
Availability: InStock

Select Specifications

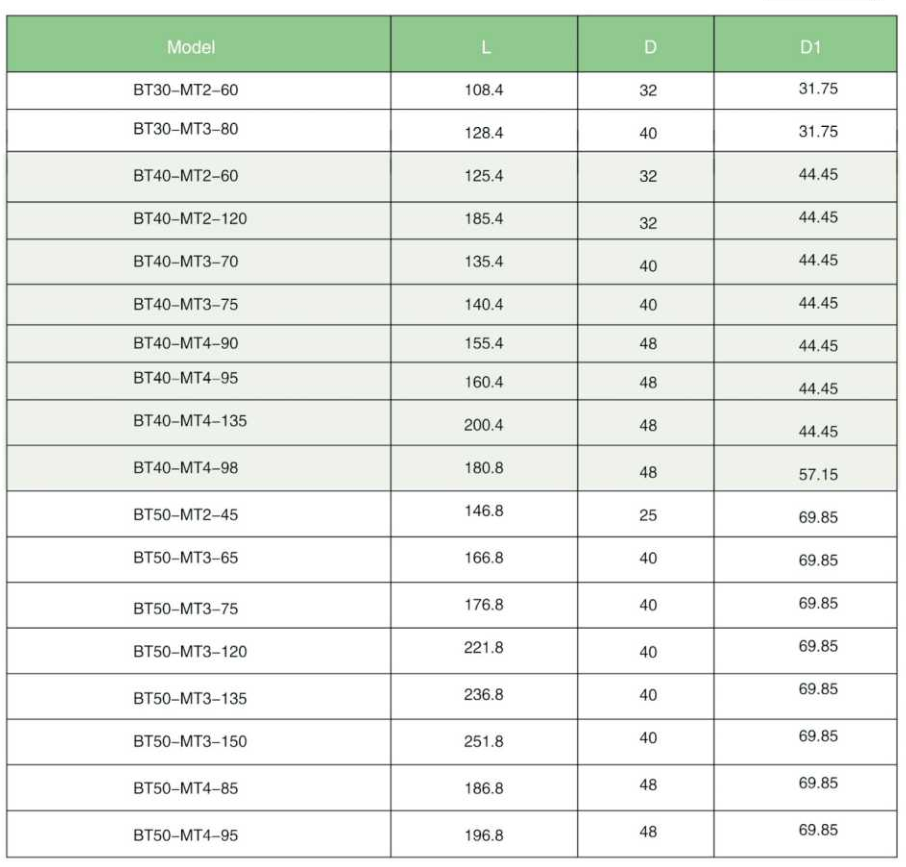

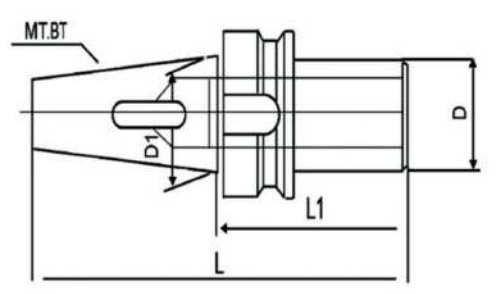

D=Diameter | L1, L2, L3=Length Dimensions | L=Overall Length | D1=Shank Diameter | All in mm
