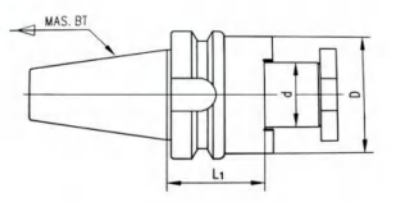

BT-FMB Shell Mill Arbors
CNC FACE MILLING
BT taper for face/shell mills
FMB (Face Mill Base) arbors with BT taper for mounting face mills and shell mills on CNC machining centers. The FMB connection provides precise centering and secure torque transmission.
FMB SIZE GUIDE
FMB Size
Pilot Ø
Typical Face Mill
FMB22
Ø22mm
Ø40-63mm cutters
FMB27
Ø27mm
Ø50-80mm cutters
FMB32
Ø32mm
Ø63-100mm cutters
FMB40
Ø40mm
Ø80-125mm cutters
BT30/BT40/BT50 tapers
Pull stud compatible
Multiple projection lengths
For indexable face mills
Specifications
Material & Construction
Material: MAS403 (20CrMnTi), Max Speed: ≥12000rpm
