BT-ER Collets Chuck Sets

COMPLETE CHUCK SETS

Everything you need in one package

High-precision BT-ER collet chuck sets for CNC machining applications. Complete sets include the chuck holder and a range of collets to cover your most common tool diameters - great value compared to buying separately.

SET INCLUDES

BT-ER chuck holder

Multiple ER collets in various sizes

ER nut included

Storage case (in some sets)

Check the QTY & Sizes specification to see exactly which collet sizes are included in each set.

Specifications

Material & Construction

Material: High-grade Steel, Hardness: HRC58-62

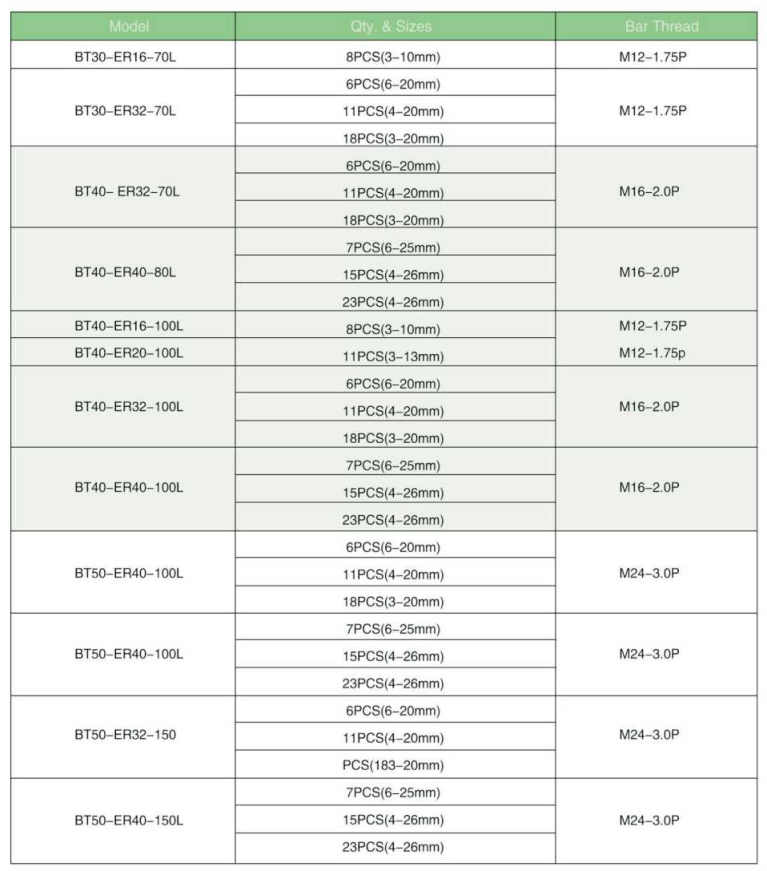

Understanding QTY & Sizes - ER Collet Diameters

Each set includes multiple ER collets with different diameters. The QTY & Sizes specification shows the number of collets included and their diameter range in millimeters.

8PCS(3-10mm) → Includes: 3, 4, 5, 6, 7, 8, 9, 10mm

6PCS(6-20mm) → Includes: 6, 8, 10, 12, 14, 16, 18, 20mm

11PCS(4-20mm) → Includes: 4, 5, 6, 7, 8, 10, 12, 14, 16, 18, 20mm

18PCS(3-20mm) → Includes: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20mm

7PCS(6-25mm) → Includes: 6, 8, 10, 12, 16, 20, 25mm

15PCS(4-26mm) → Includes: 4, 5, 6, 7, 8, 10, 12, 14, 16, 18, 20, 22, 24, 25, 26mm

23PCS(4-26mm) → Includes: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 25, 26mm

Note: Blue badges indicate ER16/ER20/ER32 collets (smaller sizes), green badges indicate ER40 collets (larger sizes).

BT-ER Collets Chuck Sets

Name: BT-ER Collets Chuck Sets
Brand: ZHUZHOU SENO
SKU: bt-er-collets-chuck-sets
Availability: InStock
